joymapper - Map Gamepad Buttons to Keyboard

joymapper Logo

joymapper is a small Windows tool that reads inputs from a specific gamepad or button box and sends keyboard events to Windows or the currently active application. The included GUI does all the work for you: press a button on your device, pick a mode and keys, save, start the mapper. Done. For purists, the whole thing can also be driven as a pure command-line tool.

Download: Grab the latest prebuilt Windows binaries from the GitHub releases page - no Python required.

Why yet another mapping tool?

Because I couldn't find one that does exactly what I want. joymapper supports seven different mapping modes - perfect for button boxes in sim racing where a single physical button should do more than one thing.

Features

  • GUI config editor: press a button on any connected device and the GUI selects the device and creates the mapping for you - no JSON editing required
  • Identifies the target device by GUID (reliable across reconnections and reorders), with an optional name fallback
  • Multiple devices per config
  • Seven button mapping modes
  • Configurable poll interval and long-press threshold
  • Graceful shutdown (releases any held keys)

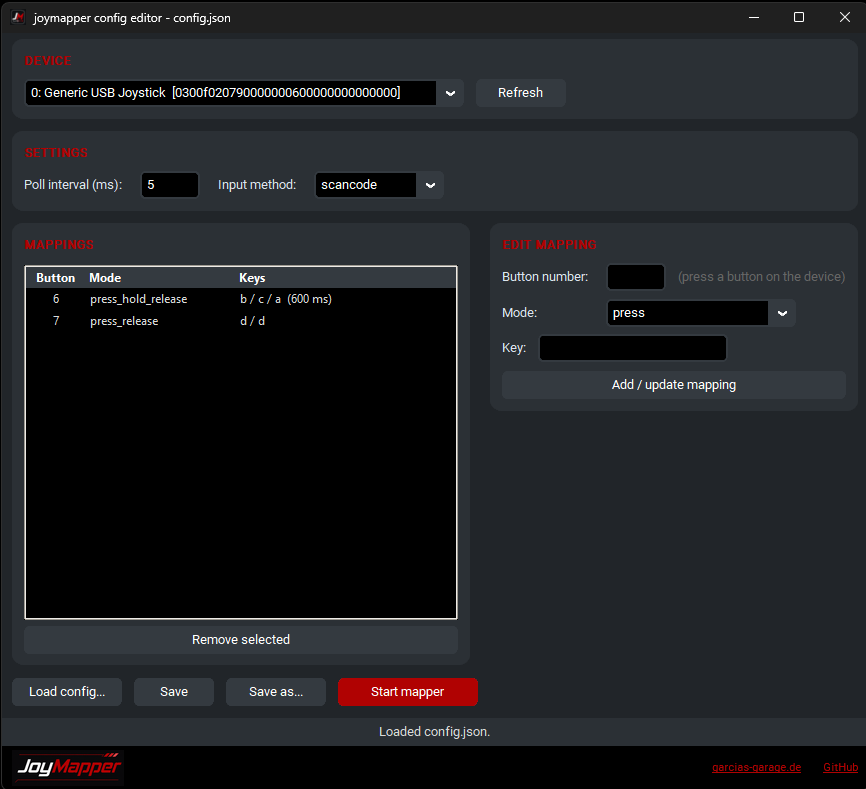

joymapper GUI

The seven mapping modes

Mode What it does
press_release Send one key on button-down and another on button-up
toggle Cycle through a sequence of keys on each press
press Send a key on each button-down
hold Hold a key while the button is held
short_long_press Send different keys for short vs. long press
short_long_press_hold Like short_long_press, but the long key is held until button-up
press_hold_release Key on press, another after threshold while held, another on release

Quick start (GUI)

  1. Download and unzip the latest release, then run joymapper-gui.exe (keep both executables in the same folder)
  2. Press a button on your device - the GUI automatically selects the device and creates the mapping for that button
  3. Pick a mode, fill in the key fields and click Add / update mapping
  4. Save, then click Start mapper

You can map several devices in one config: just press a button on another connected device.

Good to know (Windows)

  • The executables are not code-signed, so SmartScreen shows a warning - click More info -> Run anyway. Some antivirus tools may flag the download: joymapper simulates keyboard input (that is its job). These are false positives - you can always audit the source and build the executables yourself.
  • If your game ignores the simulated keys, set the input method to scancode - keys are then sent as hardware scan codes, which most games accept.
  • If keystrokes are not received by the target application, try running joymapper as Administrator.
